VNC Server for CentOS-8

Install tigervnc-server

yum install tigervnc-server xorg-x11-fonts-Type1

Check if the selinux package was installed

repoquery --requires tigervnc-server
repoquery --requires tigervnc-server | grep selinux
dnf list installed | grep tigervnc-selinux
tigervnc-selinux.noarch      1.10.1-9.el8_3      @ol8_appstream

In C8 tigervnc must be configured and started differently as in C7.

less /usr/share/doc/tigervnc/HOWTO.md

Add a user mapping

emacs /etc/tigervnc/vncserver.users

:3=mihai

Configure Xvnc options

emacs /etc/tigervnc/vncserver-config-defaults

securitytypes=vncauth,tlsvnc
desktop=sandbox
alwaysshared
session=xfce

Set VNC password for the user

[mihai@centos: ~]$ vncpasswd

Check if selinux labels are correct:

chcon -u system_u -t user_home_dir_t -v $HOME
chcon -u system_u -r object_r -t xdm_home_t -Rv $HOME/.vnc

Check tigervnc selinux policy module

repoquery --list tigervnc-selinux.noarch
/usr/share/selinux/packages/vncsession.pp

Let's unpack the module and see the content

cd /tmp
cp /usr/share/selinux/packages/vncsession.pp .
semodule_unpackage vncsession.pp vncsession.mod
sedismod vncsession.mod

play with the menu: (m for the menu)

Read here about loading and unloading policies.

sestatus | grep Loaded
Loaded policy name:             targeted

semodule -l
semodule -l | grep vncsession

If vncsession.pp policy is not loaded then:

cd /usr/share/selinux/packages
semodule -i vncsession.pp

Start tigetvnc server

systemctl enable vncserver@:3
systemctl start  vncserver@:3

If the vncsession.pp policy is not loaded, the server will return this error

systemctl start vncserver@:3

Job for vncserver@:3.service failed because the control process exited with error code.
See "systemctl status vncserver@:3.service" and "journalctl -xe" for details.


journalctl -xe

-- Unit vncserver@:3.service has begun starting up.
Mar 14 16:51:25 centos-s-1vcpu-1gb-ams3-01 systemd[2154]: vncserver@:3.service: Failed to change SELinux context to system_u:system_r:vnc_session_t:s0: Operation not permitted
Mar 14 16:51:25 centos-s-1vcpu-1gb-ams3-01 systemd[2154]: vncserver@:3.service: Failed at step SELINUX_CONTEXT spawning /usr/libexec/vncsession-start: Operation not permitted
-- Subject: Process /usr/libexec/vncsession-start could not be executed
-- Defined-By: systemd
-- Support: https://support.oracle.com
-- The error number returned by this process is 1.
Mar 14 16:51:25 centos-s-1vcpu-1gb-ams3-01 systemd[1]: vncserver@:3.service: Control process exited, code=exited status=229
Mar 14 16:51:25 centos-s-1vcpu-1gb-ams3-01 systemd[1]: vncserver@:3.service: Failed with result 'exit-code'.
-- The unit vncserver@:3.service has entered the 'failed' state with result 'exit-code'.
Mar 14 16:51:25 centos-s-1vcpu-1gb-ams3-01 systemd[1]: Failed to start Remote desktop service (VNC).
-- Subject: Unit vncserver@:3.service has failed
-- Defined-By: systemd
-- Support: https://support.oracle.com

If the selinux context is not correct the server will return the following error

journalctl -xe

/SetroubleshootPrivileged.py[1364]: failed to retrieve rpm info for /var/lib/selinux/targeted/active/modules/400/vncsession
SELinux is preventing (on-start) from entrypoint access on the file /usr/libexec/vncsession-start.
For complete SELinux messages run: sealert -l 95553683-515b-405f-9b1a-1437e273df79

*****  Plugin restorecon (99.5 confidence) suggests   ************************

If you want to fix the label.
/usr/libexec/vncsession-start default label should be vnc_session_exec_t.
Then you can run restorecon.
The access attempt may have been stopped due to insufficient permissions to access a parent directory in which case try to change the following command accordingly.
Do
/sbin/restorecon -v /usr/libexec/vncsession-start

VNC connection is not encrypted. We must use a ssh tunnel.
Open both ports ssh 22 and vnc 5903

iptables -A INPUT -p tcp --dport 22   -j ACCEPT
iptables -A INPUT -p tcp --dport 5903 -j ACCEPT

If you do this on a headless server then install X11, XFCE and lightdm as on CentOS-8.
You have to start XFCE once for the <USER> to create the default desktop.

It may be needed to reboot the server once.

Download the VNC viewer for Linux from realvnc website and install it to /opt

su
mkdir -pv /opt/vnc-viewer
mv VNC-Viewer-*-Linux-x64 /opt/vnc-viewer/
cp -v /home/mihai/Code/git-main/script/realvnc/vnc-viewer.png /opt/vnc-viewer
chown -Rv root:root /opt/vnc-viewer
chcon -Rv -u system_u -t usr_t /opt/vnc-viewer
cat > /usr/share/applications/realvnc.desktop << EOF
[Desktop Entry]
Name=RealVNC
GenericName=VNC Viewer
Comment=Control remote computer
Exec=/opt/vnc-viewer/VNC-Viewer-6.19.1115-Linux-x64
Terminal=false
Icon=/opt/vnc-viewer/vnc-viewer.png
Type=Application
Categories=Network;
Version=1.0
X-Desktop-File-Install-Version=0.23
EOF

Create the ssh tunnel

ssh -L 5903:$DIGITALOCEAN:5903 -l mihai $DIGITALOCEAN

or connect using a private key

ssh -L 5903:$DIGITALOCEAN:5903 -i ~/.ssh/id_rsa_digitalocean -l mihai $DIGITALOCEAN

Start RealVNC

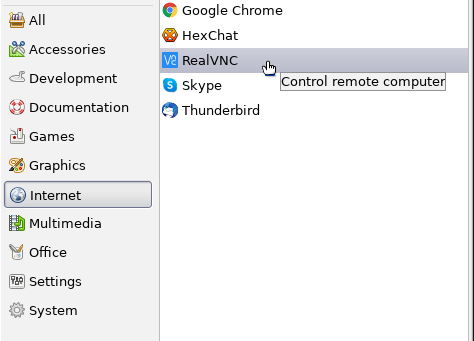

realvnc shortcut

Add a new connection

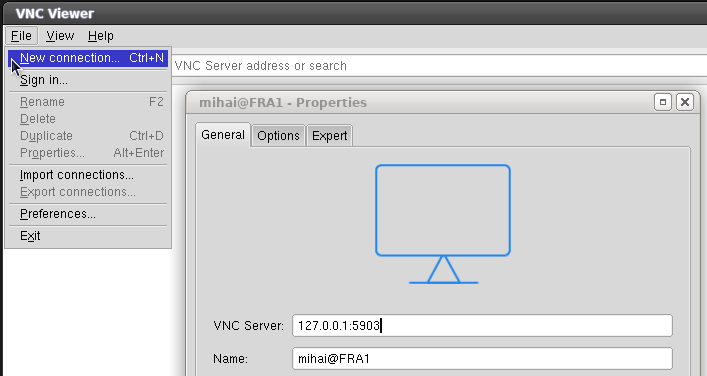

realvnc new connection

To connect from a Windows client read here about How to Tunnel VNC over SSH.
You will need PuTTY and RealVNC for this.

See which VNC port is currently open

nmap localhost
PORT     STATE SERVICE
22/tcp   open  ssh
25/tcp   open  smtp
5903/tcp open  vnc-3
6003/tcp open  X11:3
