Grub

Grub supports background (RGB 8bit) image via GFXMODE

When processing an image in Gimp, set image to RGB 8bit=256 colors via Image->Mode->Indexed and then Export-> as .png

For my big screen, download an image 2560x1080, 21:9 aspect ratio

su
cd /usr/share/grub
wget https://sites.google.com/site/grayasm/grub/linux_2560x1080.png
chown root:root linux_2560x1080.png
chmod 644 linux_2560x1080.png
chcon -u system_u -t usr_t linux_2560x1080.png

Setup grub default parameters

cat /etc/default/grub

GRUB_TIMEOUT="600"
GRUB_BACKGROUND="/usr/share/grub/linux_2560x1080.png"
GRUB_DISTRIBUTOR="$(sed 's, release .*$,,g' /etc/system-release)"
GRUB_DEFAULT="saved"
GRUB_SAVEDEFAULT="true"
GRUB_DISABLE_SUBMENU="true"
GRUB_TERMINAL_OUTPUT="gfxterm"
GRUB_CMDLINE_LINUX="crashkernel=auto"
GRUB_DISABLE_RECOVERY="true"
GRUB_GFXMODE="1920x1080"
export GRUB_COLOR_NORMAL="light-gray/black"
export GRUB_COLOR_HIGHLIGHT="magenta/black"
GRUB_DISABLE_OS_PROBER="true"

To edit grub in UI via grub-customizer

yum install grub-customizer
grub-customizer

Kernel option to boot

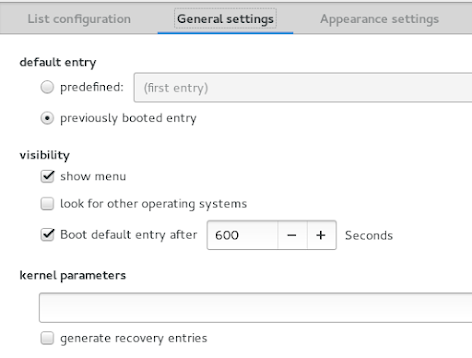

GRUB General Settings

Grub background image

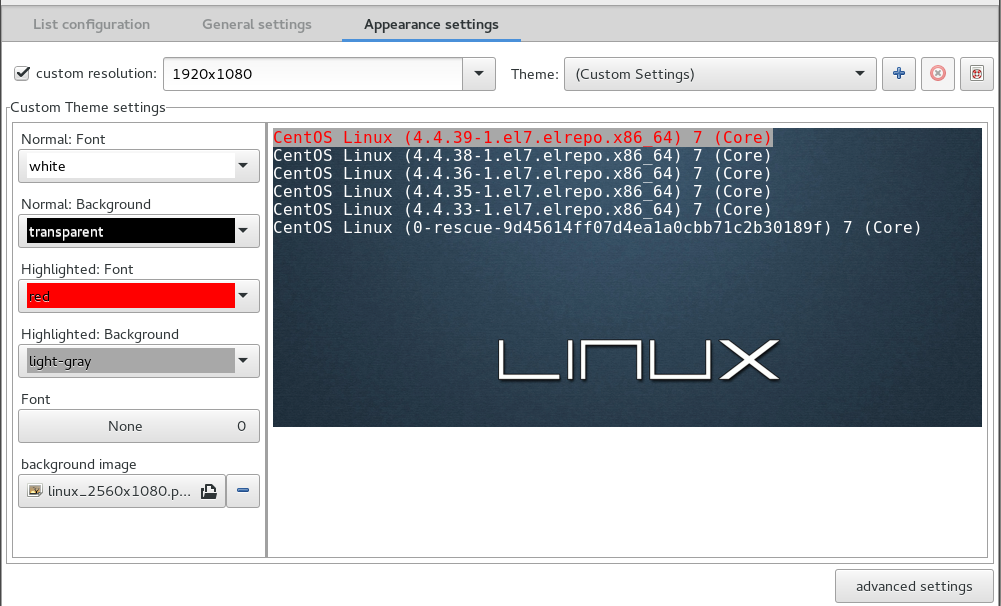

GRUB Appearance Settings

All options in the advanced tab

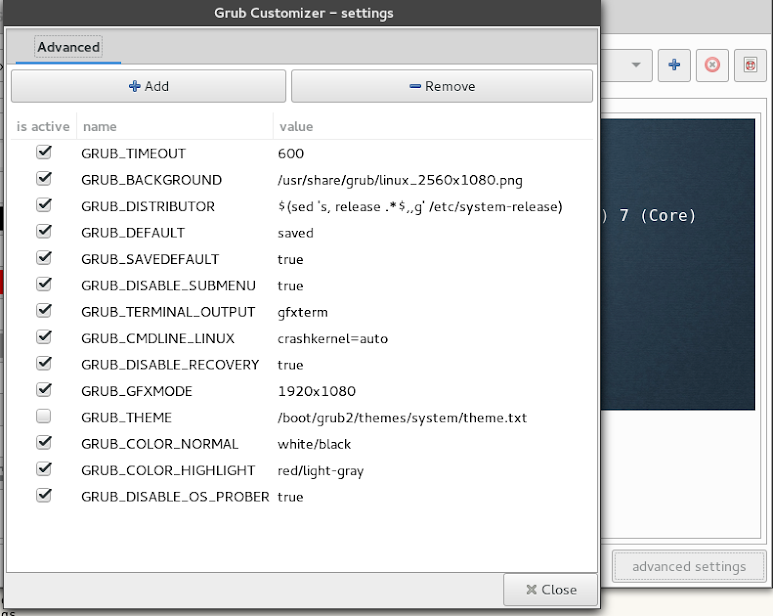

GRUB Customizer Settings

Menu Save option would be equivalent with grub2-mkconfig

Save grug configuration

grub2-mkconfig -o /boot/grub2/grub.cfg
